Augmented Reality in Neurosurgery

Applications and Evolution

傅冠豪 醫師

基隆長庚神經外科

What is Augmented Reality?

  • Superimposing digital content onto the real environment
  • Integrates 3D anatomical data with real world
  • AR ≠ VR
    • AR: Digital + Real world
    • VR: Completely virtual
Modern AR glasses

Modern AR Head-Mounted Displays

Historical Evolution of AR

  • 1968: Ivan Sutherland - "The Sword of Damocles"
    • First AR head-mounted display
  • 1990s: First AR neuronavigation systems
  • 2015+: Second wave - Modern wearable devices
    • Microsoft HoloLens 1 & 2
    • Magic Leap 1 & 2
    • Apple Vision Pro
  • 85% of AR research published after 2014
The Sword of Damocles

"The Sword of Damocles" (1968)
First AR HMD by Ivan Sutherland

Why AR in Neurosurgery?

Traditional Navigation

  • Attention shift to separate monitor
  • Pointer needed for correlation
  • Increased cognitive workload

AR Navigation

  • Direct overlay on surgical field
  • No attention shift
  • Reduced cognitive workload
  • Better spatial understanding
AR overlay example

Technical Components of AR

  1. Image Segmentation - Identify regions of interest
  2. Model Rendering - Create 3D visualizations
  3. AR Projection - Display virtual content
  4. Image-to-Patient Registration - Align virtual with real

Each component has multiple technical solutions with unique advantages and limitations

Image Segmentation Methods

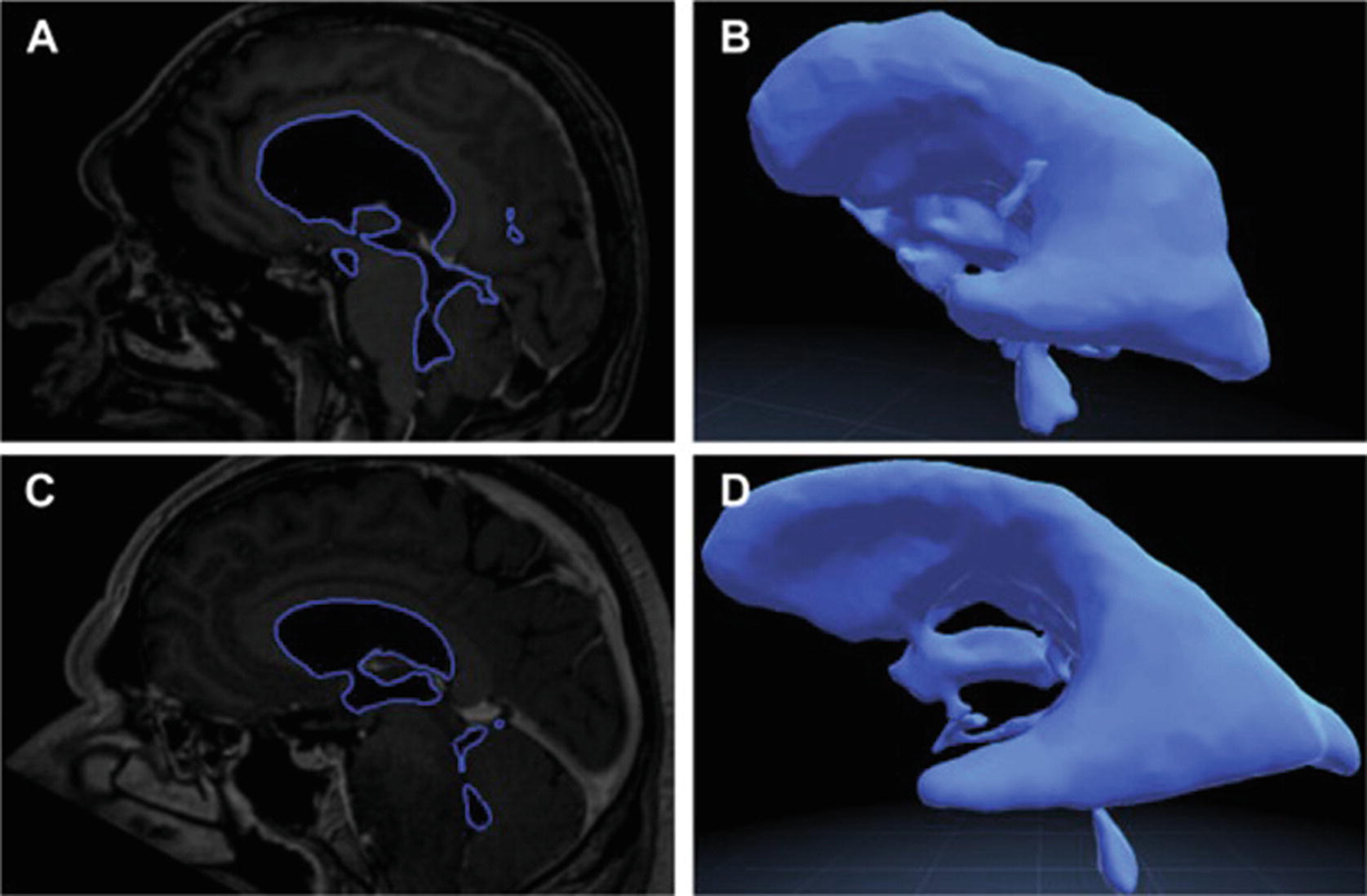

Ventricular segmentation

Automatic segmentation of ventricular system

  • Threshold-based
    • Simple, limited for complex anatomy
  • Atlas-based
    • Uses reference templates
  • Deep Learning
    • Automatic, accurate
    • Requires training data

Rendering: Volumetric vs Surface

Volumetric

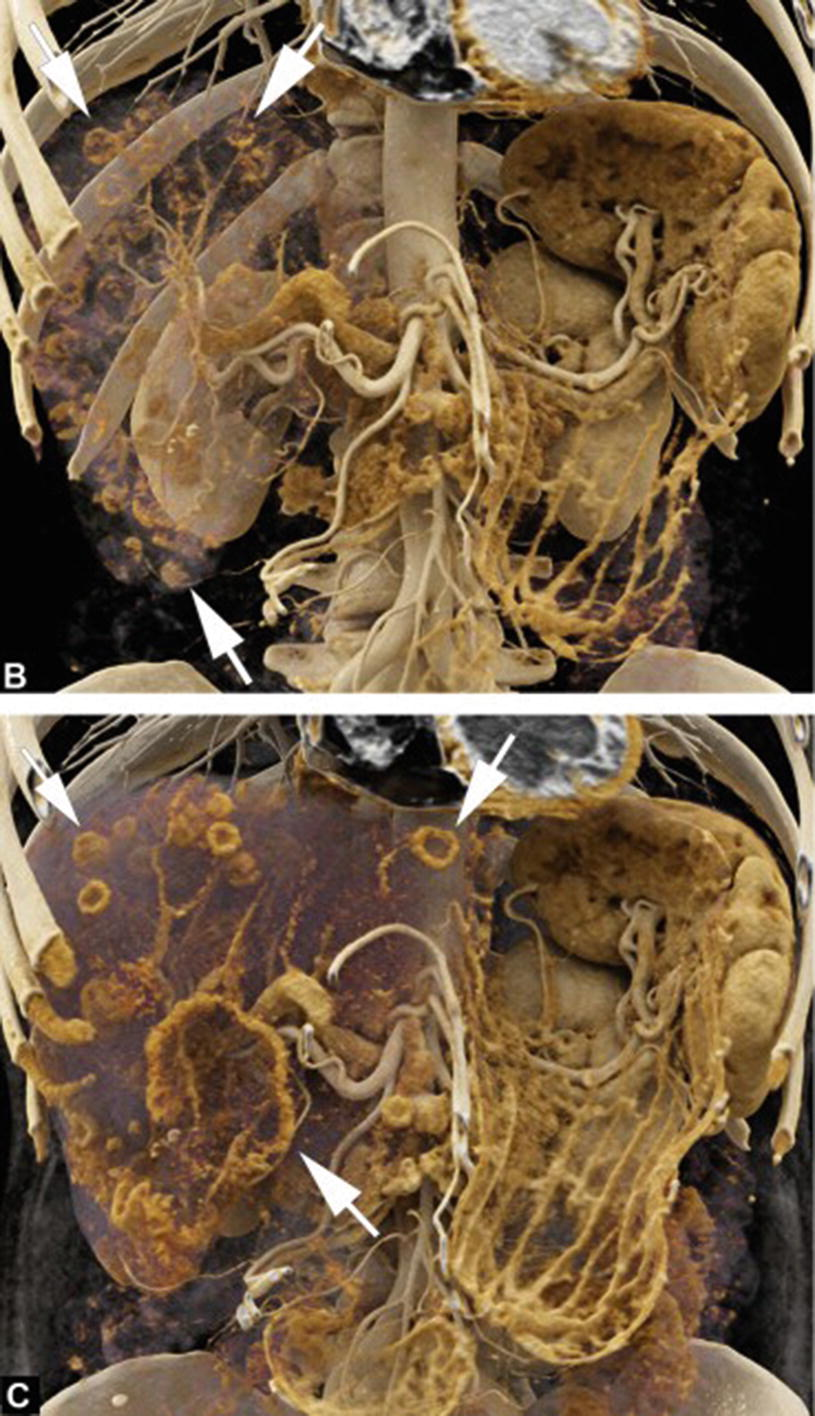

Volumetric rendering
  • Complete volume data
  • Realistic visualization
  • Computationally intensive

Surface-based

Surface rendering
  • External boundaries only
  • Computationally efficient
  • Clear, concise visualization

AR Projection Modalities

  • Digital Displays - Tablets, smartphones
    • Accurate but cumbersome to hold
  • Heads-Up Displays (HUDs) - Surgical microscopes
    • Integrated into microscope optics
  • Head-Mounted Displays (HMDs) - AR glasses
    • Hands-free, spatial mapping capable
AR-HMD in OR

Image-to-Patient Registration

Critical for accurate neuronavigation

  • Optical Tracking - Infrared retroreflective markers
    • Sub-millimeter accuracy
  • Electromagnetic Tracking - Magnetic field-based
    • No line-of-sight limitations
  • Computer Vision - Feature-based, markerless
    • No additional hardware needed
  • Intraoperative Imaging - Real-time CT/MRI
    • Fully automatic registration

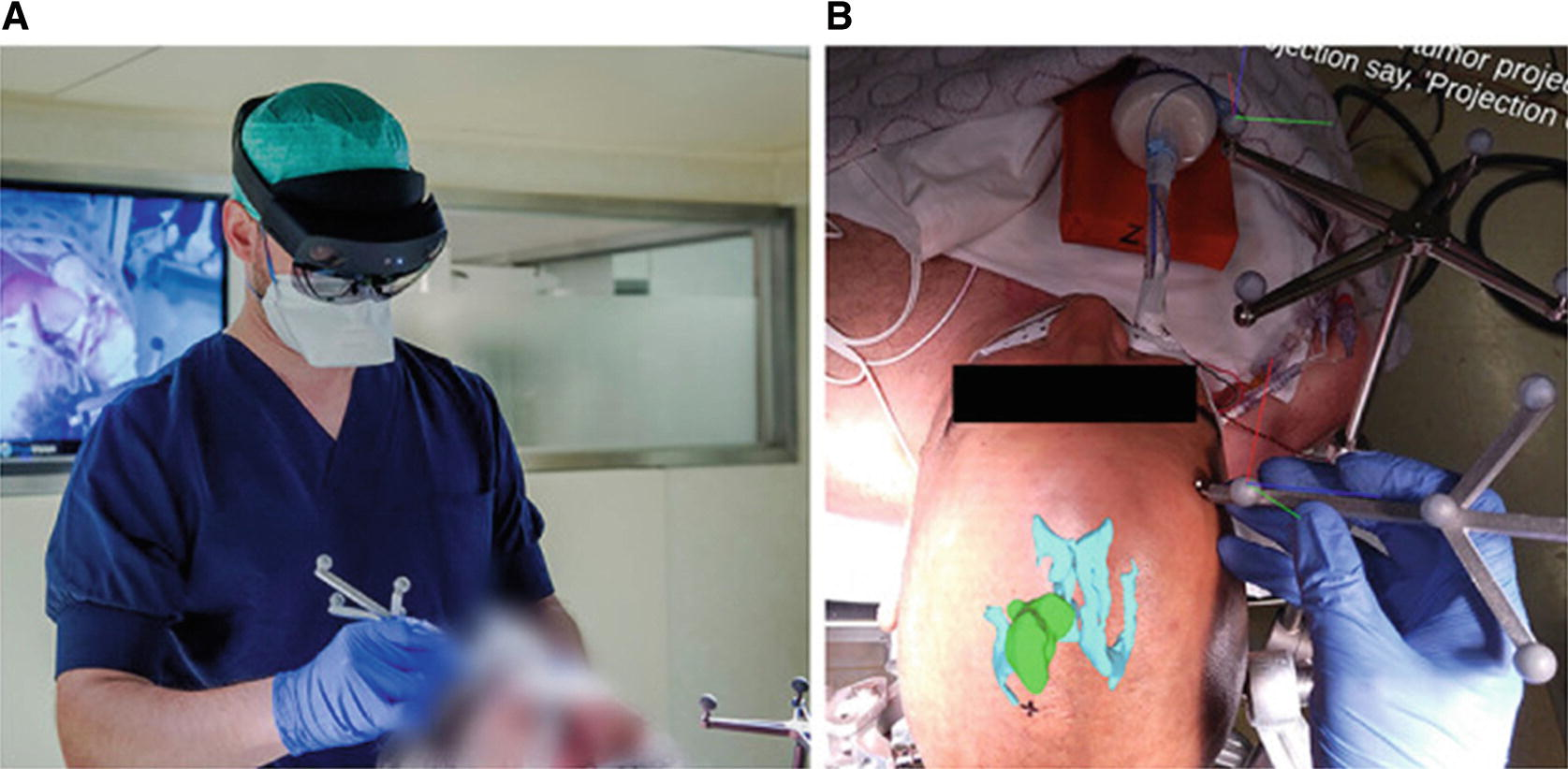

Optical tracking

Measuring AR Accuracy

Metric Definition AR Limitation
TRE Target Registration Error Doesn't account for projection offset
FRE Fiducial Registration Error No correlation with clinical accuracy
Planning Deviation Planned vs achieved target User-dependent
Overlay Error Visual projection discrepancy Most clinically relevant for AR

AR in Vascular Neurosurgery

Vascular AR

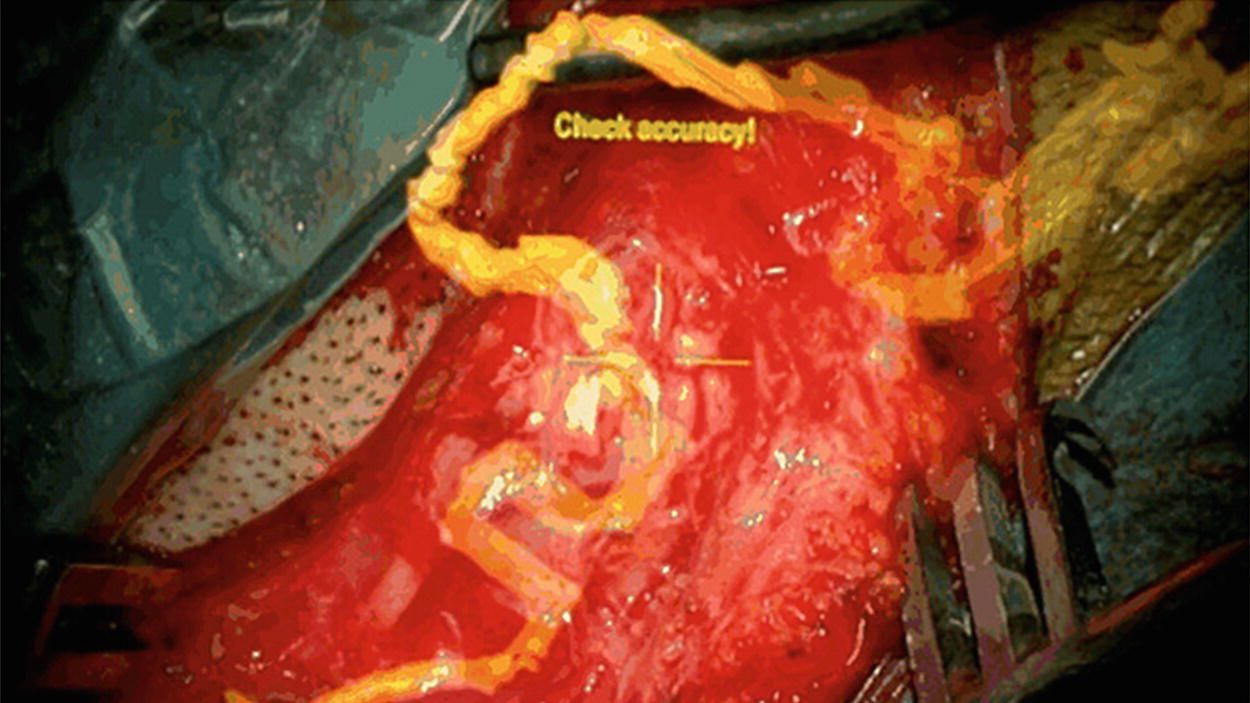

AR overlay of vessels in microscope

  • Aneurysm surgery
  • Arteriovenous malformations
  • AV fistulas

Applications:

  • Craniotomy planning
  • Vessel localization
  • Complex angioarchitecture visualization
  • Clip size selection

AR in Neuro-Oncology

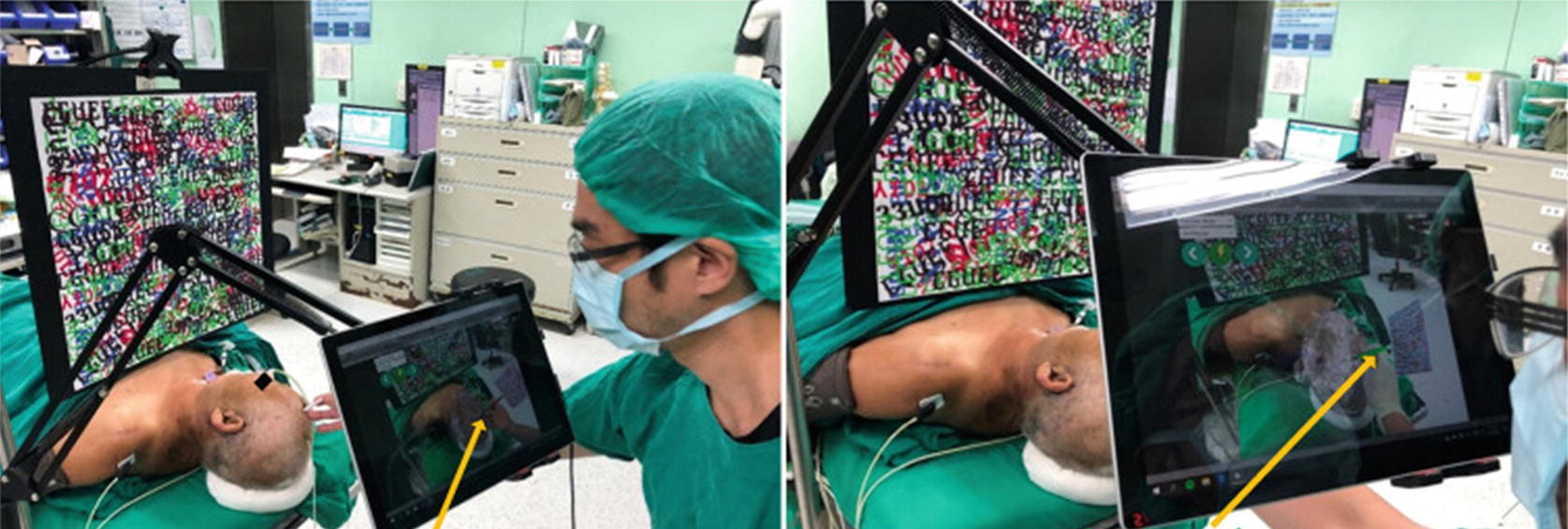

Tumor overlay
  • Tumor Types: Gliomas, Metastases, Meningiomas
  • Pre-operative: Incision and craniotomy planning
  • Intra-operative: Distinguish tumor-brain interface
  • Advanced: Fiber tractography integration for safe resection
  • Challenge: Brain shift after tumor resection

AR in Spinal Surgery

Most extensively studied AR application

  • Primary Use: Pedicle screw insertion guidance
  • Advantages:
    • Real-time instrument tracking
    • Reduced fluoroscopy (radiation exposure)
    • Superior user experience
    • Non-inferior accuracy vs conventional navigation
  • Other Applications:
    • Discectomy
    • Intradural tumor resection
    • Kyphoplasty/Vertebroplasty

AR in Education & Training

Medical Education

  • 3D anatomical models
  • No need for cadavers
  • Increased motivation
  • Decreased cognitive load

Surgical Training

  • Realistic simulations
  • Haptic feedback
  • Performance metrics
  • Procedures: EVD, burr holes, pedicle screws

Patient education: Increased understanding and satisfaction

Current Limitations

  • Projection Errors: Additional registration error component
  • Visual Conflicts: Vergence-accommodation mismatch
    • Can cause eye strain, vertigo
  • Computational Power: Limited by HMD size
    • Complex anatomy, real-time tracking challenges
  • Visual Occlusion: Holograms obstruct surgical view
    • Can be mitigated with specialized shaders
  • Brain Shift: Tissue displacement after resection
    • Requires intraoperative imaging or tissue modeling
  • Cost & Complexity: Substantial investment required

Future Directions

Technical Improvements

  • High-resolution spatial mapping
  • Enhanced projection accuracy
  • Varifocal displays
  • Improved computational power
  • Better graphical shaders

Clinical Integration

  • Real-time brain shift correction
  • Multimodal imaging integration
  • AI-powered segmentation
  • User feedback-driven design
  • Industry collaboration

Goal: Transform AR from ancillary tool to central OR technology

Conclusion

  • AR is evolving from experimental to clinical reality
  • Proven applications across neurosurgical subspecialties
  • Technical challenges being addressed by innovation
  • Potential to revolutionize neurosurgical practice

The future neurosurgeon will seamlessly integrate virtual and real worlds

Questions?
